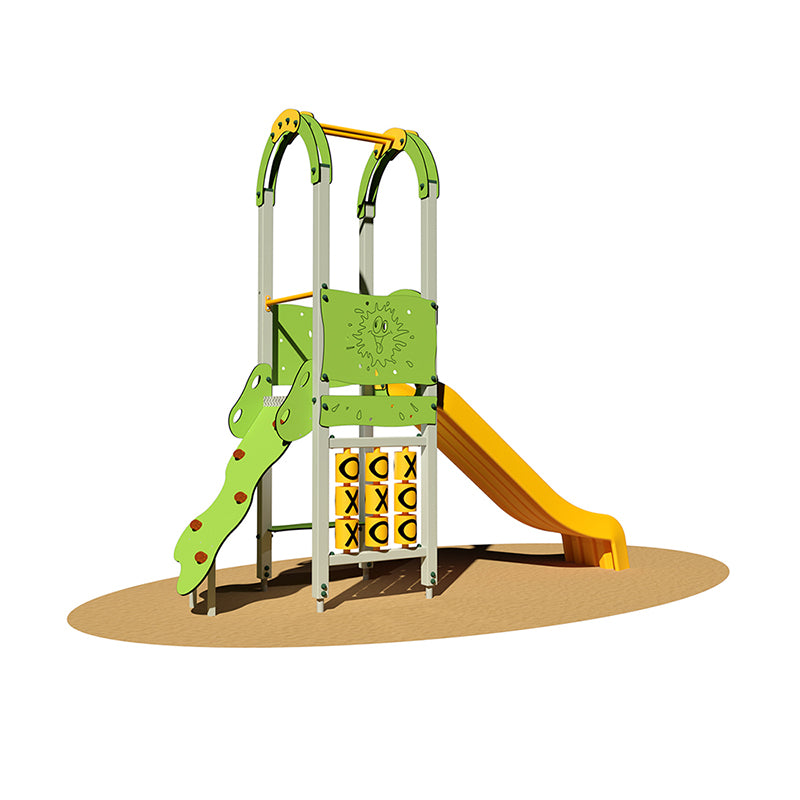

Giochipark Torretta Peggy (climbing holds)

Technical features:

MAXIMUM DIMENSION: cm 375x335x360h
FALL HEIGHT: 220 cm
AGE OF USE: 3-8 years
ASSEMBLY TIME: 1.5 h
NUMBER OF USERS: 7
MINIMUM SPACE: 752x726 cm
IMPACT AREA: 44.00 m2

Certified in compliance with European Standards EN 1176 by the German Institute TÜV - SÜD.
Made with EN AW 6060 alloy aluminium uprights and pantographed, edge-free HPL bilaminate panels. Component list: No. 1 turret with 9x9 cm section aluminium uprights, platform (drop height 150 cm) in chequered aluminium, decorative roof made with HPL bilaminate panels and galvanised and painted steel tubes, protective panels in 8 mm HPL bilaminate, bench in 15 mm HPL bilaminate. Dim. 100x100x360h cm; No. 1 riser in 15 mm HPL bilaminate and handles in composite material of coloured polyester resin and quartz powder. Two side panels, in 15 mm HPL bilaminate, connect the riser to the turret. No. 1 slide H 150 cm in mass-coloured rotational polyethylene with high density, connected to the structure with panels in 15 mm HPL stratified bilaminate; No. 1 manipulative panel for tic-tac-toe game. Assembly using 8.8 galvanised steel bolts and self-locking nuts. Standard nut-cover elements in coloured nylon. Oven-baked at 180°C. Pole-cover caps in polyethylene. Hot-dip galvanised metal attachments for anchoring to the ground.
