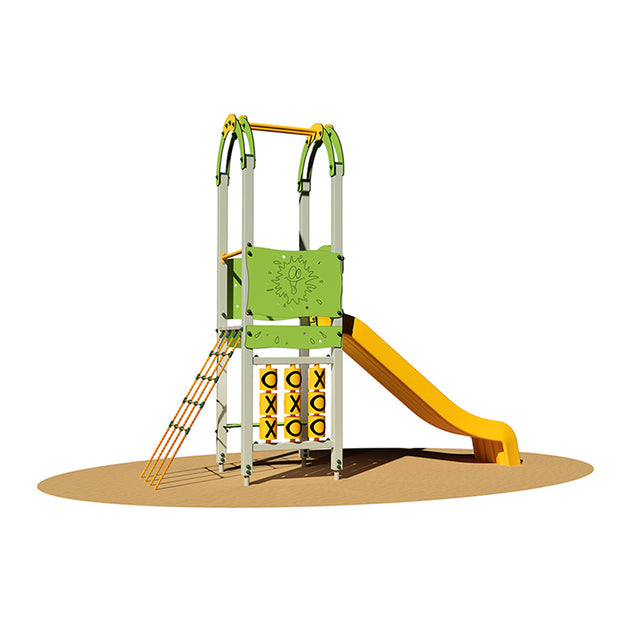

Giochipark Torretta Peggy (network lift)

Technical features:

MAXIMUM DIMENSION: cm 380x335x360h
FALL HEIGHT: 220 cm
AGE OF USE: 3-8 years
ASSEMBLY TIME: 1.5 h
NUMBER OF USERS: 7
MINIMUM SPACE: 725x700 cm
IMPACT AREA: 42.00 m2

Certified in compliance with European Standards EN 1176 by the German Institute TÜV - SÜD.
Made with EN AW 6060 alloy aluminum uprights and pantographed, edge-free HPL bilaminate panels. Component list: No. 1 turret with aluminum uprights, section 9x9 cm, platform (drop height 150 cm) in chequered aluminum, decorative roof made with HPL bilaminate panels and galvanized and painted steel tubes, protective panels in 8 mm HPL bilaminate, bench in 15 mm HPL bilaminate. Dim. 100x100x360h cm; No. 1 climbing net in nylon rope with internal core in coated steel cable and colored nylon rope block. No. 1 slide H 150 cm in mass-colored, high-density rotational polyethylene, connected to the structure with 15 mm HPL bilaminate panels; No. 1 manipulative panel for tic-tac-toe game. Assembly using 8.8 galvanized steel bolts and self-locking nuts. Standard colored nylon nut covers. Oven painted at 180°C. Polyethylene pole caps. Hot-dip galvanized metal attachments for anchoring to the ground.
