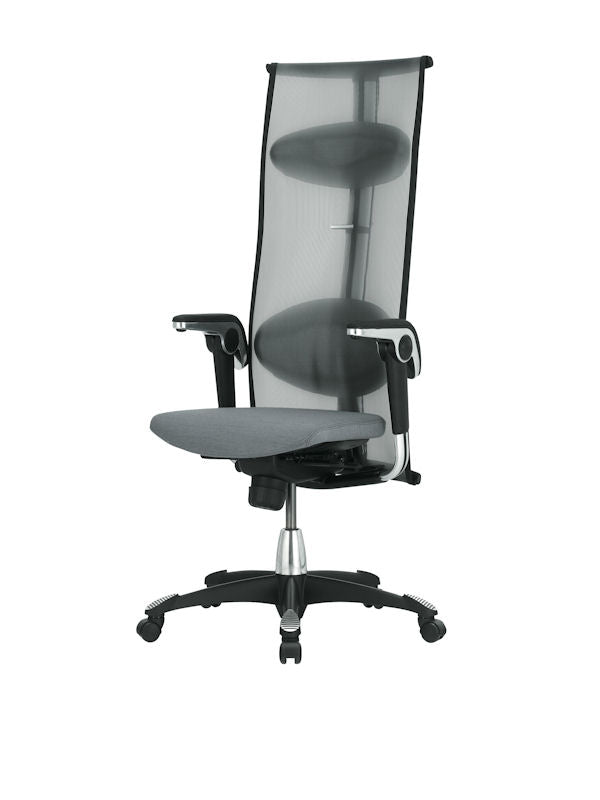

Hag H09 Inspiration 9230 high back

Technical features of the Hag Inspiration 9230 model

* BalancedMovementMechanism (complete freedom of movement forward and backward)
* Backward swing tension adjustment
* Seat adjustable in height and depth
* The high backrest is adjustable in the lumbar and cervical area. The transparent fabric is available in the Space (dark) or Lumina (light) version, it has a breathable effect ensuring constant freshness and comfort.
* The swing mechanism can be locked in 3 positions
* HAG Tiltdown armrests adjustable in height, depth and depth, allow you to get closer to the desk. Covered in black leather
* Base with inclined spokes in black satin aluminium (optional in polished aluminium. Specify in the order) and footrest.
* 150mm piston


Measures

Seat height with 150mm gas lift 390-530
Seat height with 200mm gas lift 460-640
Backrest height 1060
Height of main support point on backrest 170-265
Height of main support point on headrest 625-775
Seat depth 395-515
Armrest height 200-280
Seat width 480
Max chair width 670
Base diameter 740
The tilt range is 7° forward and 14° backward from a neutral position of 3° rearward.
Weight 21.5 kg

Available coverings:

Back:
Lumina (by Krall und Roth): transparent fabric with a shiny surface and vertical chenille stripe effect, for a comfortable feel. Composition: 67% polyester, 33% polyamide. Abrasion resistance >100,000 Martindale cycles; resistance 1457Nx1283N, fire resistance EN 1021-1:2000 cigarettes; maintenance: use the vacuum cleaner brush or a white cloth with water.
Space (by Gabriel): A transparent polyamide fabric with a breathable feel and vertical stripe effect. Composition 100% monofilament polyester; Abrasion and resistance 2469N x 11083N, Fire resistance: BS EN 1021:1-2 cigarettes and matches, FAR 25.853, DIN 50050-1 B1 and B2. Care: Use a vacuum cleaner brush or a white cloth with water.
Sitting:
Tex(by Innvik Selgren): Quality combed wool with a satin weave, for a slightly shiny effect. Composition: 92% wool, 8% polyester; Abrasion resistance: 108,000 Martindale cycles; Fire resistance: BS EN 1021 1-2 cigarettes and matches; Light fastness 5-7.
Shimmer (by Innvik Selgren): Top quality combed wool with excellent rubbing and breathability. Composition 80% wool, 20% polyamide; Abrasion resistance: 104,000 Martindale cycles. Fire resistance: BS EN 1021 1-2 cigarettes and matches.

Colors:

Tex 1440 grey striped, 1723 black-blue striped, 1900 black striped, 440 grey, 723 dark blue, 900 black
Shimmer: shi 001 white, shi 009 black

Optional

-Base with inclined spokes in polished aluminum €98.40
-Price reduction for HAG H09 Basic armrests (instead of Tiltdown armrests) -175,20€
-200mm Piston with Black or Polished Finish €20.40

AVAILABLE IN 5 WEEKS
