Chinesport Alulift 320 P

Technical data:

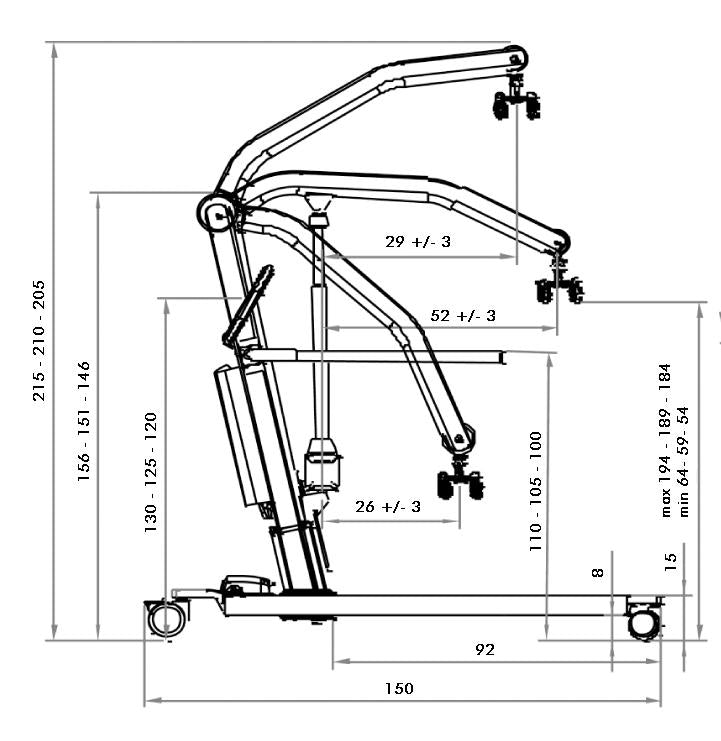

The column is adjustable in 3 different heights. If there is no need to lift the patient from the floor, we recommend adjusting the height of the column to the highest point of the three options to be able to reach higher heights.

The base is adjustable in width to allow access around chairs and obstacles of different sizes thanks to an electric leg opening.

The Alulift 320 P is equipped with 100 mm swivel wheels with a mechanical lock on the lower ones. It is able to pass through a normal door with the patient in load.

The lift works with a remote control connected to the device. The remote control has the functions of lifting and lowering and the width adjustment of the legs. The remote control also incorporates the status of the batteries, overload and service warnings. Also supplied with a professional control unit with display, controls on the front panel, safety functions, information on overload, maintenance service and technical data.
There is also an emergency stop button to ensure an immediate stop to any movement activated.
A mechanical system provides an emergency descent in the event of engine failure.

Supplied with a balance bar. Possibility of applying loop harnesses or clip harnesses with the Balance AC0288 balance bar connected.

Technical Data
Maximum lifting load: 320 kg
Maximum transportable load: 300 kg
Use of verticalization actuator: 10% 2 min. use - 18 min break
Leg opening actuator use: 10% 2 min. use - 18 min break
Battery charger: inside the control unit
Fault diagnosis and maintenance panel: on control unit display
Average battery charging time: 6/8 hours
Weight: 62 kg
Parking brake: on the 2 rear wheels
Power supply: internal 24V rechargeable battery
Fuses-Protections: internal non-inspectable
Protection: IP X4
GMDN Code: 12330
Classification: CND Y123603
