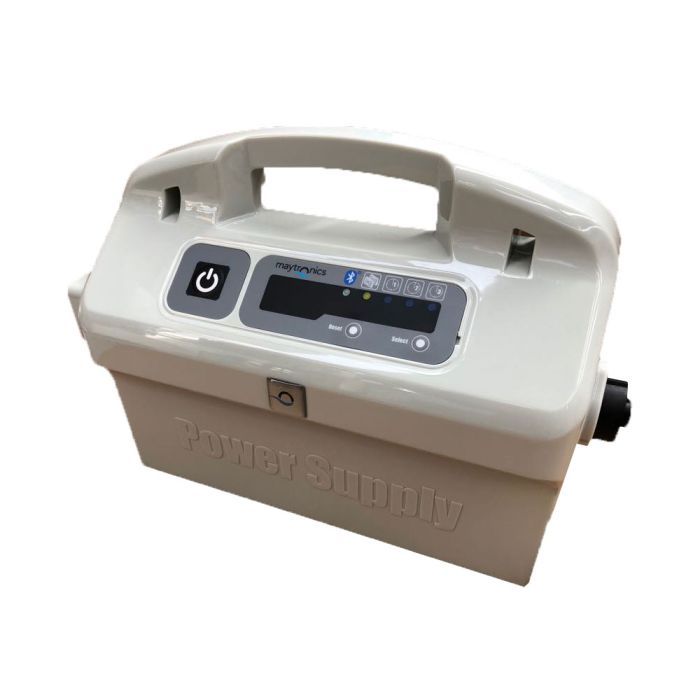

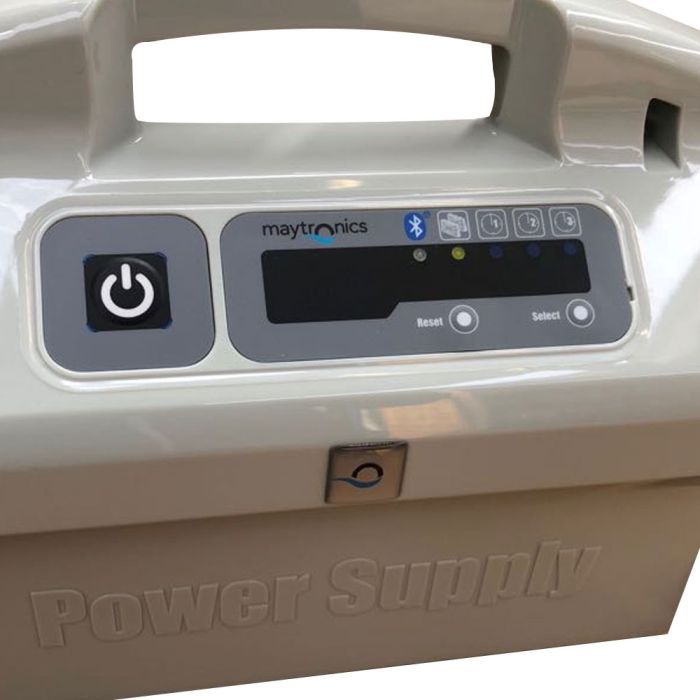

Dolphin Transformer Timer Maytronics 9995678-ASSY for Dolphin robot cleaners with remote control receiver

Dolphin maytronics transformer with WEEKLY TIMER for robot with remote control receiver
Possibility to decide to turn on the cleaner automatically – every day – every two days – every 3 days

Transformer equipped with filter bag sensor with full filter warning light.

Double insulation with thermal protection switch. 220-230V / 29V DC. Output 180W.
Prevents and protects the cleaning robot in the event of power surges or drops.

Power cord not included

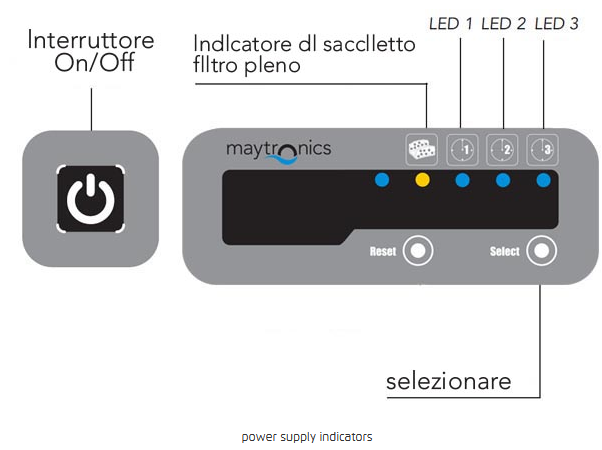

Weekly timer

When the power supply is turned on, the three LEDs will flash for 5 seconds.
At this point, by pressing the SELECT button you can choose a weekly cleaning program for the next week.

Please note! — The robot will always start working after setting.

LED 1 – The robot will automatically run a full cycle every day = 7 times a week.
LED 2 – The robot will automatically run a full cycle every second day = 4 times a week.
LED 3 – The robot will automatically perform a full cycle every three days = 3 times a week.

If no button is pressed during the first 5 seconds after the power supply is turned on, the robot will only perform one cleaning cycle. When the robot is operating in weekly timer mode, the LED lights up constantly and intermittently between cycles. At the end of the week, the power supply automatically turns off. The robot must be reprogrammed.

Full filter bag indicator

The power supply is equipped with a unique full filter bag indicator.

The red LED indicates two filter conditions:

When flashing - The filter is partially clogged
When it is on - The filter is clogged and needs to be cleared and cleaned

If the LED does not turn off after the filter has been cleared and cleaned, press the RESET button while the robot is operating.
