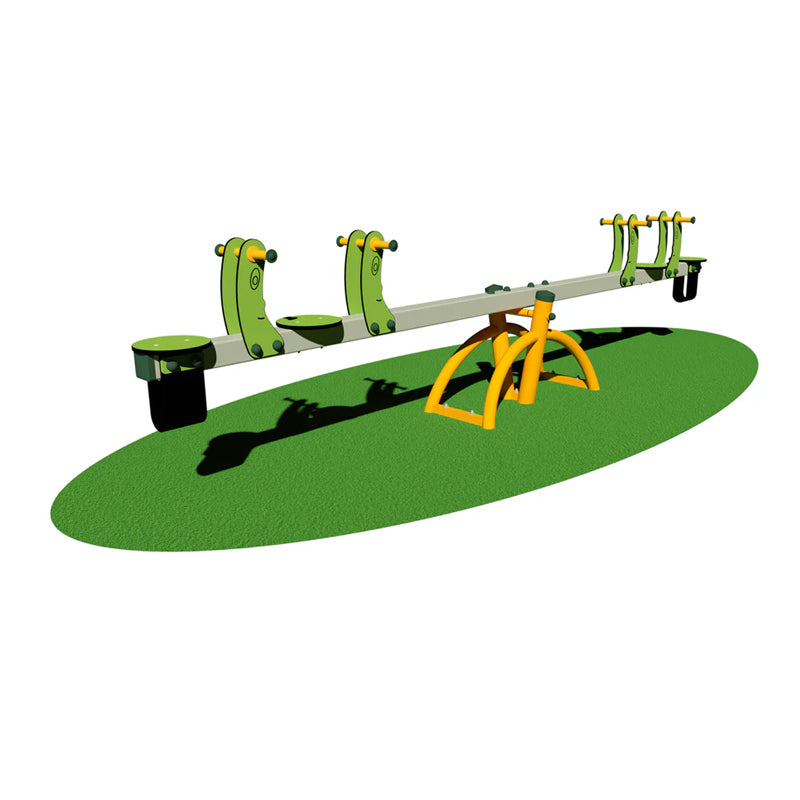

Giochipark Bilico Bigio 4 seats

Technical features:

Age of use: 3-12
Max size: 45x393x93 h
Drop Height: 95
Minimum Space: 625x250
Impact Area: 16.00
Total weight: 15 kg
Max Length: 400
Assembly Time: 1 h
Number of Users: 4

Certified in compliance with European Standards EN 1176 by the German Institute TÜV-SÜD.
Made of EN AW 6060 alloy aluminum and electro-galvanized steel. Oscillating beam in EN AW 6060 alloy aluminum, section 90x90 mm, equipped with 4 seats in brightly colored HPL stratified bilaminate, thickness 15 mm. Shaped panels in brightly colored HPL stratified bilaminate, thickness 8 mm, to support the standard-compliant grip handles in colored nylon. The oscillation mechanism with Teflon fulcrum and bearings consists of a central frame in galvanized steel with uprights, section Ø 89 mm and shaped arms, section Ø 60 mm. No. 2 shock-absorbing devices in canvas rubber positioned at the end of the beam. Assembly using 8.8 galvanized steel bolts and self-locking nuts. Standard-compliant nut-cover elements in colored nylon. Polyethylene pole cover caps. Oven painted at 180°C in polyester powder with very high resistance to atmospheric agents and UV radiation. Attachments for anchoring to the ground.
