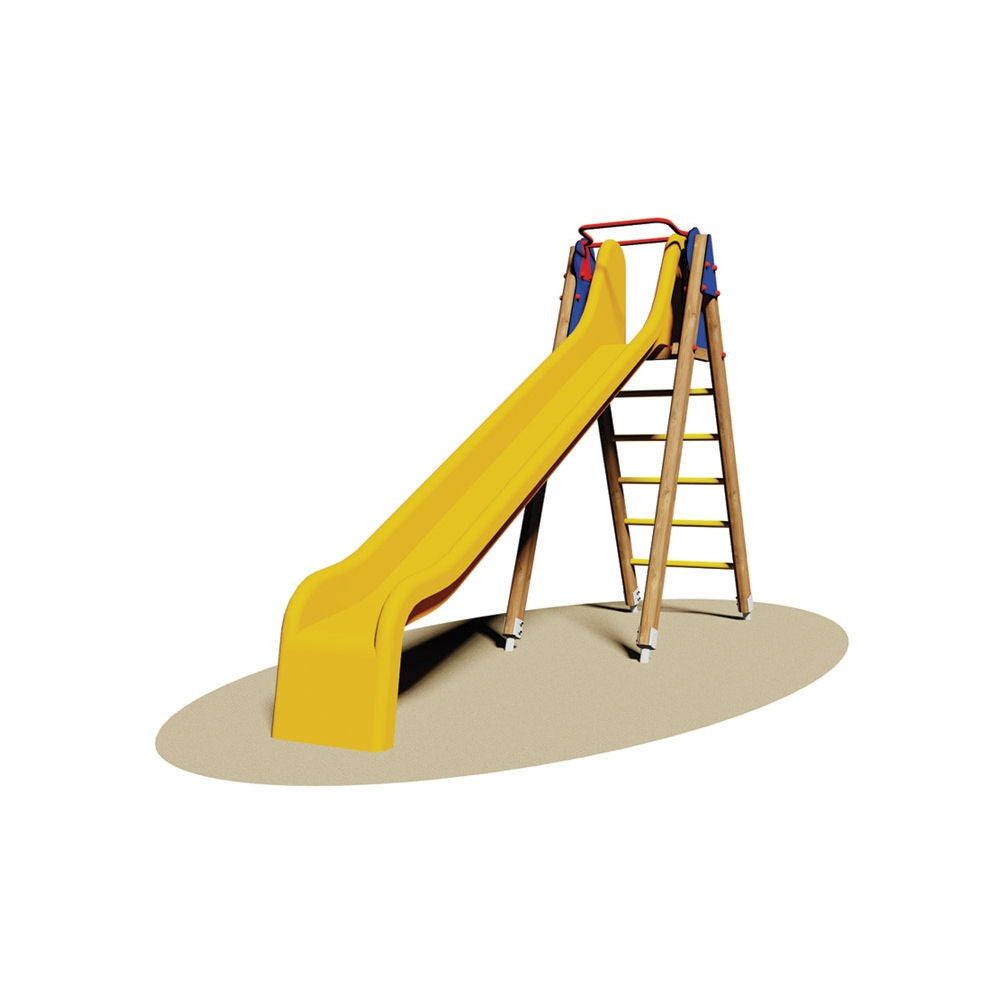

Giochipark Slide Max

Giochipark Slide Max | 504

Technical features:

Dimensions: cm 430x92x255h
Min Space: cm 800x425
Impact Area: m² 34
Drop height: 180 cm
Max weight: 27 kg
Assembly Time: 1 h
Number of Users: 4
Age: 5-12

Certified in accordance with European Standards EN 1176 by the German Institute TÜV - SÜD
Made of Nordic pine wood impregnated in an autoclave with non-toxic salts.

Components list:

No. 1 ladder module with iroko rungs Ø 45 mm fixed to two inclined uprights of oval section 8x12 cm with 2 other uprights opposite that are joined at the top by two panels in okoumé mahogany plywood with pantographed phenolic glue and with rounded edges treated with colored impregnation and finished with non-toxic water-based wax paints; another connecting element is a platform in birch plywood with phenolic glue finished with colored films on both sides. Complete with a safety handle in shaped steel tube and painted in the oven at 180°.

No. 1 fiberglass slide h. cm 180 made with various layers of high density resin. Assembly using 8.8 galvanized steel bolts and self-locking nuts. Standard colored nylon nut cover elements. Hot-dip galvanized metal attachments for anchoring to the ground.

To be buried
