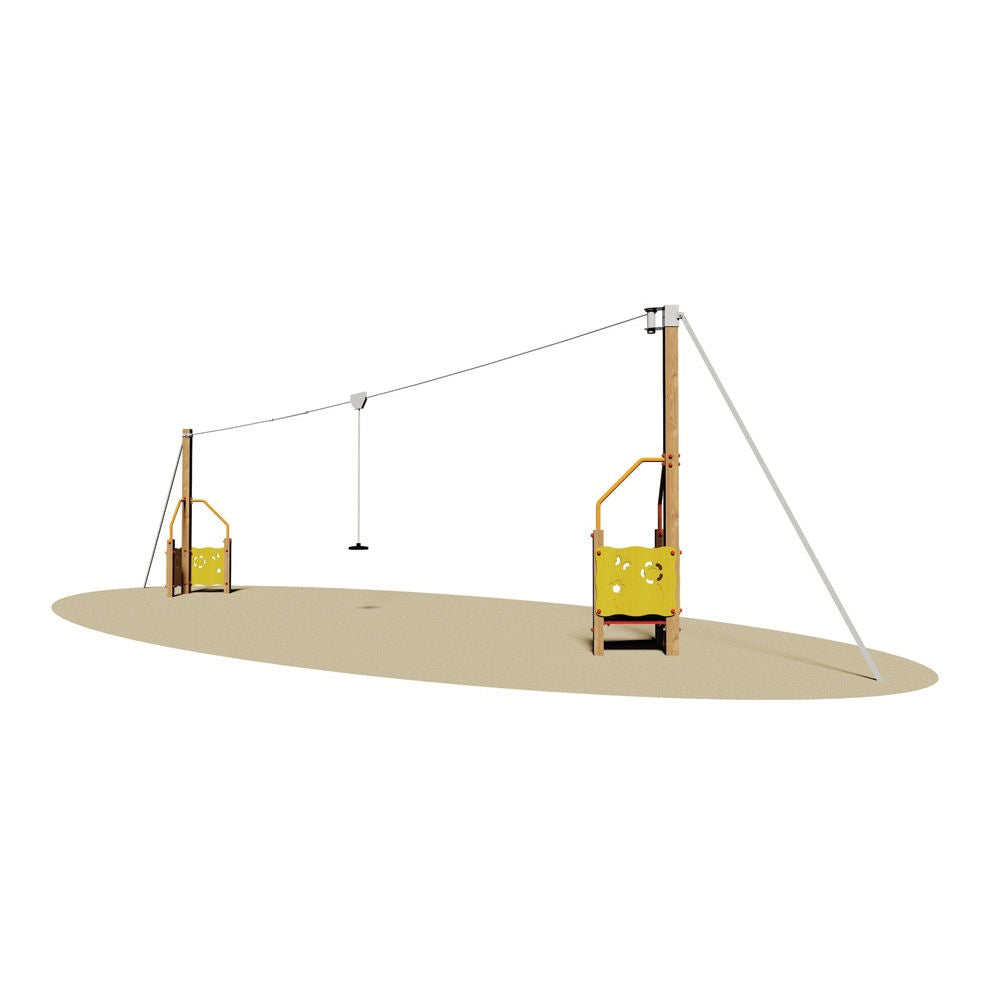

Giochipark Teleferica Illinois- Art. 292 A

Illinois Children's Cable Car. Certified in accordance with European Standards EN 1176 by the German Institute TÜV - SÜD. Made of Nordic pine laminated wood impregnated in an autoclave with non-toxic salts. List of components: No. 2 vertical uprights section 12x12 cm to be anchored to the ground at different heights and connected on the back to two inclined tie rods in hot-dip galvanized steel round tube Ø 60 mm painted in the oven at 180°. No. 2 reinforcement and support modules for the uprights made of wooden poles section 9x9 cm, panels in okoumé mahogany plywood with phenolic gluing, pantographed and without edges and buttresses in galvanized steel tube and painted in the oven at 180°. On the starting module there is a platform in birch plywood with phenolic gluing finished with colored films on both sides. No. 1 sliding system on a multi-strand galvanized steel cable complete with elastic stop devices at the ends. No. 1 flat circular seat in shock-absorbent rubber with an internal core in press-folded sheet steel and suspended from a welded and hot-dip galvanized narrow-link chain. All wooden parts are treated with a high-penetration, non-toxic, water-dilutable wax-based colored impregnator. Assembly using 8.8 galvanized steel bolts and self-locking nuts. Standard colored nylon nut-cover elements. Hot-dip galvanized metal attachments for anchoring to the ground.
