Seamaid High Power RGB Ecoproof LED lamp with PAR56 remote control - 36 LEDs 30W

HIGH POWER MULTICOLOR RGB LED LAMP WITH REMOTE CONTROL

Equipped with a rear connection chamber, the SeaMAID Ecoproof PAR56 lamp is 100% waterproof.
Universal size, it fits perfectly as a replacement for a 300W incandescent or LED lamp.
This global innovation offers benefits for construction, renovation and replacement.

Installing Seamaid Ecoproof PAR56 lamps, with new watertight technology (lamp body welded to the optics) has never been so easy!

To fix this new lamp to the crown of the projector, simply screw the special clips provided. This allows for a saving of labor and material, thanks also to:

• Removal of the rear part
• joint removal
• cable gland removal
• reduction in the number of stainless steel screws

On existing pools it is possible to install the lamp without necessarily replacing the niche by purchasing the light body niche adapter kit separately (consisting of an ABS crown, three adjustable metal tabs and screws), making the solution universal.

Resistant : The PAR56 Ecoproof lamp is made by injecting polycarbonate which gives it a high resistance to shock, heat and chemical aggression from water treatment products. The two screw terminals embedded in the plastic ensure great solidity when connecting the 12 V power cable.

Reliable and safe: An optic, specially developed for aquatic lighting, friction-welded, allows for a homogeneous, harmonious and non-blinding distribution of light for swimmers.
Development of the lamp body with modification to the connectors to also allow resin insulation, rear cap with special profile for high frequency welding.

Economical : The LED light source allows for numerous savings both for the user (energy savings) and for the professional, when building the pool. A 2x1.5mm² cable connected to a 20V AC toroidal transformer is sufficient for the installation of a SeaMAID PAR56 lamp (savings on materials and labor).

TECHNICAL FEATURES:

• Color temperature: RGB multicolor
• No. of LEDs: 36 Power LEDs
• Programs: 11 fixed colors and 5 automatic programs
• Power On/Off: on/off + Remote Control
• Luminous efficiency: 750 lm / full rGb
• V. / Hz.: 12v / 50-60Hz
• Power: 30W
• Illumination range: 120°
• Insulation class: CLASS III
• Degree of protection: IP68 (1m)

OPERATION

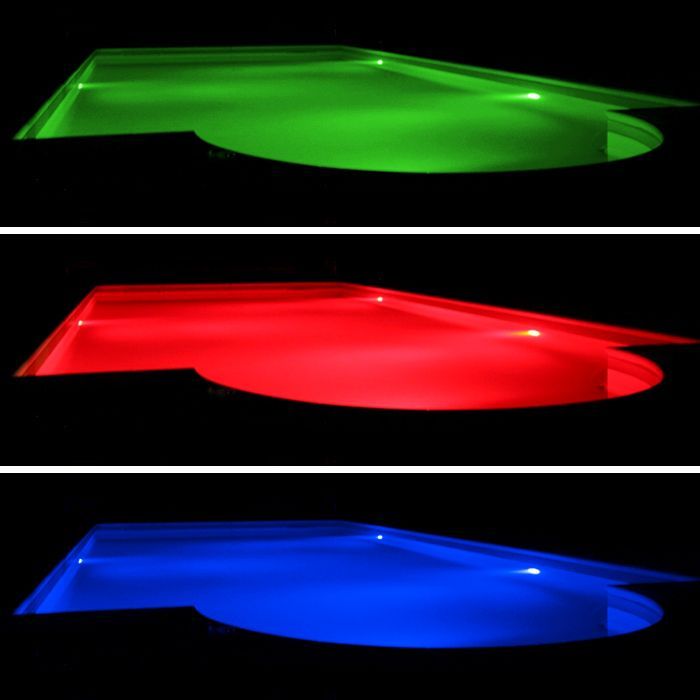

The system offers 16 programs with 11 fixed colors and 5 automatic ones.
Control is done manually by radio remote control or by power cut. Each quick cut, less than 2 seconds, switches to the next program. After a cut of more than 10 seconds, the lamp will keep the last program used.
The use of the remote control requires positioning in front of the lamp at a maximum distance of 10 meters, antenna deployed. The presence of metal near the projector or too deep immersion can restrict the use of the remote control even to a very short distance of 1 to 2 meters.
The first use of the remote control requires configuration with its receiver, integrated into the system.

Remote control setup procedure:

Install the supplied battery into its compartment
Turn off the lamp for more than 20 seconds and turn it on again (switch)
Turn off/On/ Turn off/On the power supply for fast cutting, less than 3 sec.
Press the O and S buttons on the remote control simultaneously for 1 second
The lamp flashes several times, configuration successful.
Then simply press the C or P buttons on the remote control several times to obtain the desired colour or programme.

Installation recommendations:
These pool lamps must be connected to a double-coiled safety isolating transformer with a power at least 20% higher than the total absorbed power.
