Technical Features:
Resistant: Made by injecting polycarbonate which gives them high resistance to shock, limescale and chemical aggression from water treatment products.
Effective: The optics, fixed with friction welding, have been specially developed for aquatic lighting to allow for a homogeneous distribution of light, harmonious and not blinding for swimmers.
Economical: The light source composed of LEDs allows for numerous savings both for the user (energy savings) and for the professional, when building the swimming pool.
A 2×1.5 mm² cable connected to a 10W protected toroidal transformer is sufficient to install a SeaMAID mini projector (savings on materials and labor).

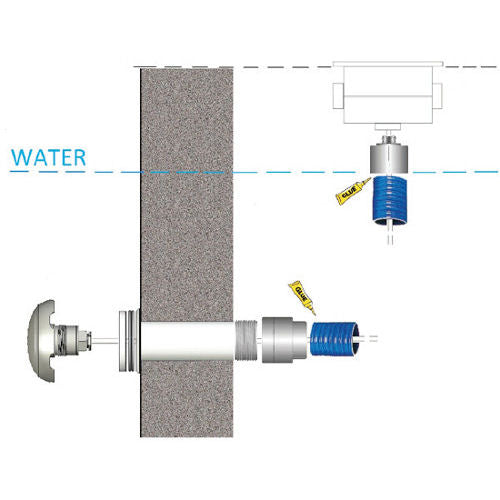

Easy to install: With a 1.5” male thread as a fastening system, no specific tools are needed for installation. Simply provide a 1.5” suction nozzle and screw the SeaMAID mini projector by hand. The power cable that passes through the nozzle must be routed to a junction box using an airtight sheath (supplied with 2 metres of cable type HO7RNF 2×1.5 mm²)
Low energy consumption – Installation savings – Long life – No risk of burns – No danger to the eyes – Safe for children – Easy to use – 24 month warranty – TUV certified

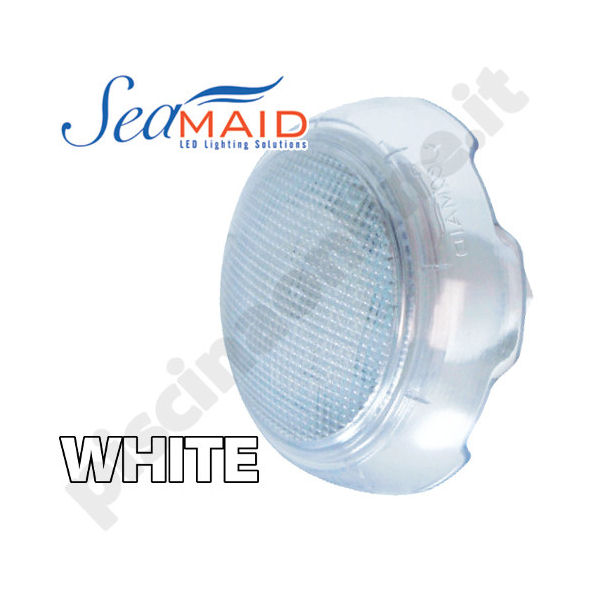

Ideal for new installations, this projector allows you to illuminate an area of the pool up to 5 meters in a perfectly harmonious and non-blinding way.
The ignition order is made from the general electrical panel of the swimming pool.
Technical Features:
Color temperature: cold white 7500k
No. of LEDs: 30
Programs: 1 fixed color
On/Off: on/off
Luminous efficiency: 427 lm
V. / Hz.: 12v / 50-60Hz
Power: 5.1W
Illumination range: 120°
INSTALLATION RECOMMENDATIONS:

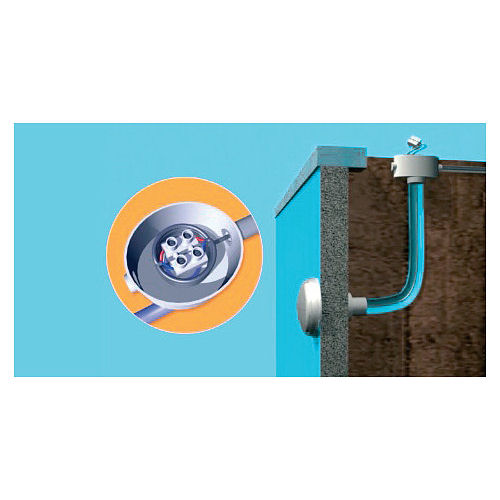

These pool projectors must be connected to a double-coiled safety isolating transformer with a power rating of at least 20% higher than the total absorbed power. It is important to check the compatibility of the suction nozzle before final assembly. Some models with a thread stop system are not suitable. The wall outlet will be connected to a junction box via a watertight hose. It is recommended to use SeaMAID connectors which ensure perfect watertightness of the installation. Wind the rest of the cable into the junction box to allow future replacement of the projector out of the water. For an above-ground pool, preferably use the SeaMAID power box, specially designed to power LED projectors.
-
