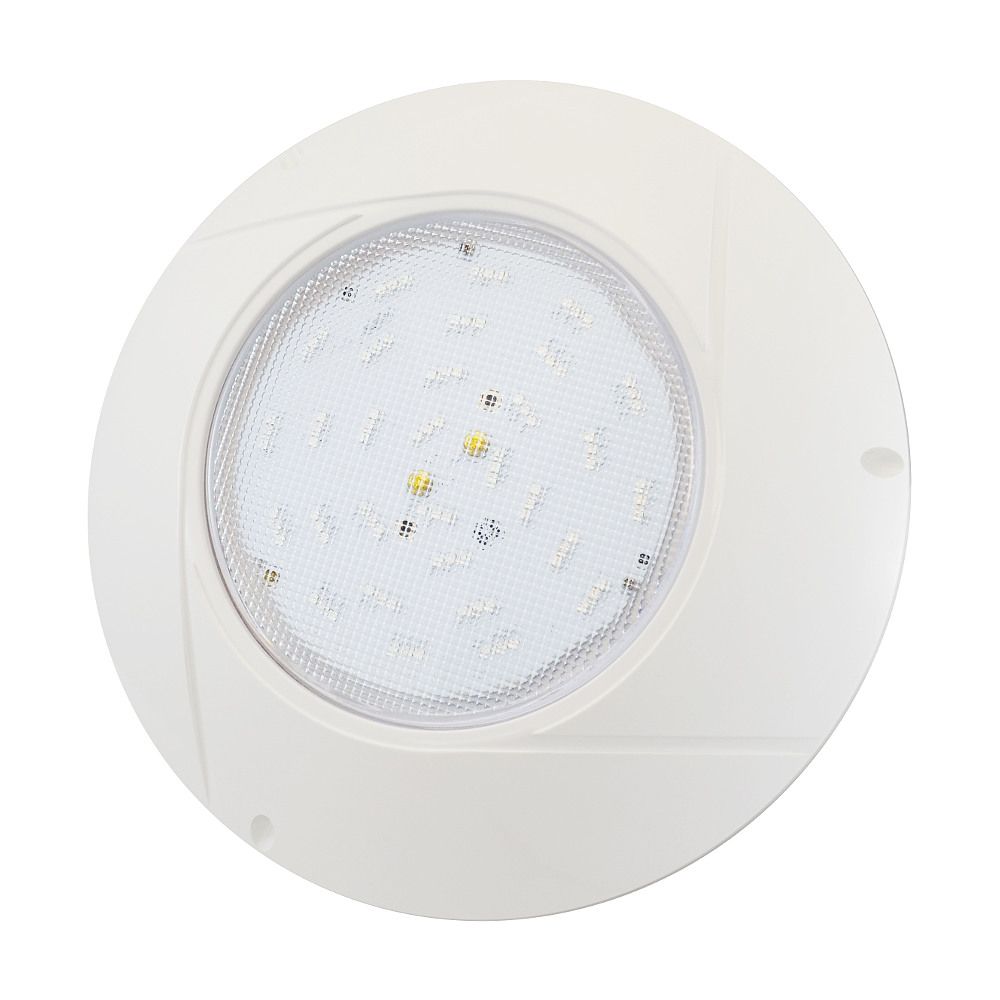

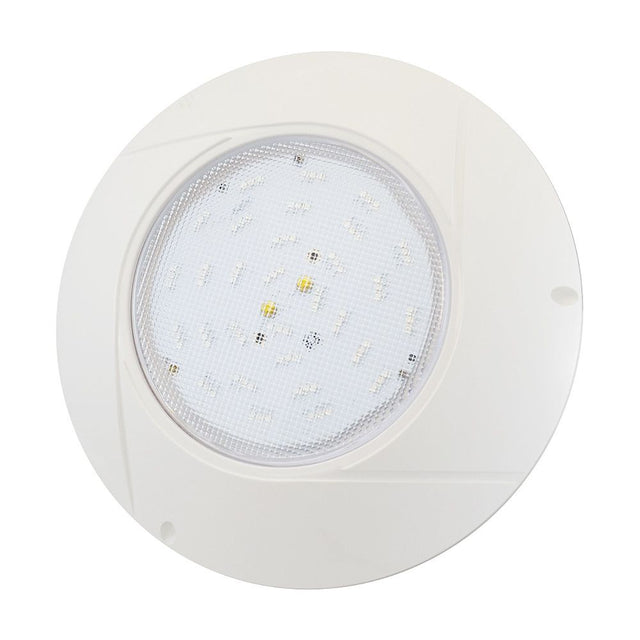

SEAMAID Universal Flat Projector Headlight PAR56

Product Features:

Resistant: Made from injected polycarbonate and ABS which gives it high resistance to shock, heat and chemical aggression from water treatment products.

Reliable and safe: An optic, specially developed for aquatic lighting, friction-welded, allows for a homogeneous, harmonious and non-blinding distribution of light for swimmers.

Economical: The LED light source allows for numerous savings both for the user (energy savings) and for the professional, when building the pool. A 2×1.5 mm² section cable connected to a 20V AC toroidal transformer is sufficient for the installation of a flat light (savings on materials and labor).

Easy to install: Having a 1.5" male thread as a fixing system, no specific tools are needed for installation. Just provide a 1.5" suction nozzle, screw the back of the flat headlight by hand.
The power cable that passes through the vent must be routed to a junction box using an airtight sheath (supplied with 2 metres of HO7RNF 2×1.5 mm² type cable) and with a special installation kit.

The cable is routed inside the wall bushing up to the junction box, with a total watertight seal.
ABS base to be screwed onto the wall bracket.

TECHNICAL FEATURES:

Number of LEDs: 270 ultra-bright LEDs
programs: unique
Consumption: 14W ±10% (AC 12V)
dimension: Ø 17 mm – h 109mm
Luminous flux: 600 lumens ±10%
Voltage: 12V AC / 50-60Hz
